Sandvik JM series jaw crusher has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Every Sandvik jaw crusher is a product of know-how and experience optimized by Finite Element Analysis (FEA). Each model is tested virtually for stress, strain, shock, deformation, thermal loading, vibration and noise under a wide range of load conditions. The result is exceptional reliability.

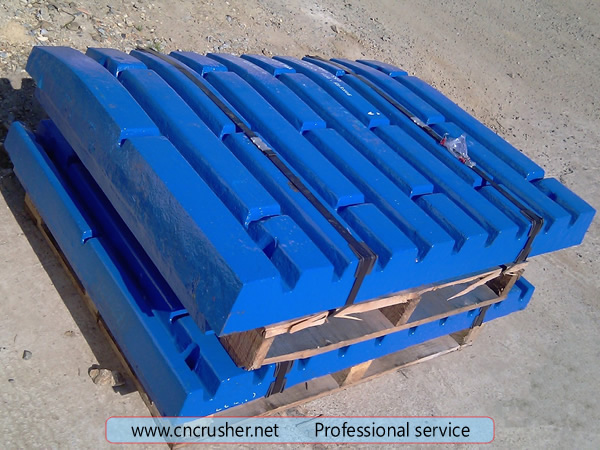

We can supply wide teech, corrugated, cheek plate, jaw plate, coarse corrugated, heavy duty and sharp toothed for JM806(CJ408), JM907(CJ409), JM1107, JM1108(CJ411), JM1206, JM1208(CJ412), JM1211(CJ612), JM1312(CJ613), JM1511(CJ615) and JM1513(CJ815) jaw crushers with high quality and low price.
Model | Former name | Capacity | Feed opening | CSS range | Max permitted power | Total weight |
t/h | mm (inch) | mm (inch) | kW (hp) | kg (lbs) | ||
CJ208 | 50-260 | 770 x 510 | 30-150 | 55 | 7100 | |
(30.3 x 20) | (1 1/8 - 6) | 75 | 15700 | |||
CJ209 | 55-375 | 950 x 560 | 25-175 | 65 | 9800 | |
(37 x 22) | (1.2-7) | 90 | 21600 | |||
CJ211 | J11 | 80-490 | 1100 x 700 | 40-200 | 90 | 14600 |
(43 x 27) | (1.6-7.9) | 125 | 32200 | |||
CJ408 | JM806 | 75-285 | 800 x 550 | 50-180 | 55 | 9900 |
(32 x 22) | (2-7) | 75 | 21800 | |||
CJ409 | JM907 | 85-320 | 895 x 660 | 50-180 | 75 | 14100 |
(35 x 28) | (2-7) | 100 | 31100 | |||
CJ411 | JM1108 | 150-565 | 1045 x 840 | 100-225 | 110 | 21700 |
(41 x 33) | (3-9) | 150 | 47800 | |||
CJ412 | JM1208 | 165-790 | 1200 x 830 | 100-275 | 132 | 26600 |
(47 x 33) | (3-11) | 200 | 58600 | |||
CJ612 | JM1211 | 300-805 | 1200 x 1100 | 125-275 | 160 | 36600 |
(47 x 43) | (5-11) | 250 | 80700 | |||
CJ613 | JM1312 | 330-960 | 1300 x 1130 | 125-300 | 160 | 41500 |
(51 x 45) | (5-12) | 250 | 91500 | |||
CJ615 | JM1511 | 385-1185 | 1500 x 1070 | 125-300 | 200 | 53000 |
(59 x 42) | (5-12) | 275 | 116800 | |||
CJ815 | JM1513 | 480-1160 | 1500 x 1300 | 150-300 | 200 | 64500 |
(59 x 51) | (6-12) | 275 | 142200 |
We focus on providing high quality crusher and crusher wear spare parts.
Symons cone crusher 2 feet, 3 feet, 4.25 feet, 5.5 feet, 7 feet.
Sandvik CH420, CH430, CH440, CH660, CH880, CS420, CS430, CS440, CS660.
HP100, HP200, HP300, HP400, HP500, HP700, HP800.
42-65,50-65,54-75,60-89,60-110 Svedala MK-II Primary Gyratory Crusher.
And wear spare parts for other common crushers.
