CONE CRUSHER WEAR PLATE

Wear plates protect crusher frames, arms, and internal surfaces from abrasive damage. Manufactured from high-manganese steel (Mn13Cr2, Mn18Cr2) and high-chromium cast iron for maximum durability. Common applications: frame liners, arm guards, feed plates, and counterweight liners for Sandvik, Metso, and Symons crushers.

Browse our wear plate inventory below. Provide your part number for pricing.

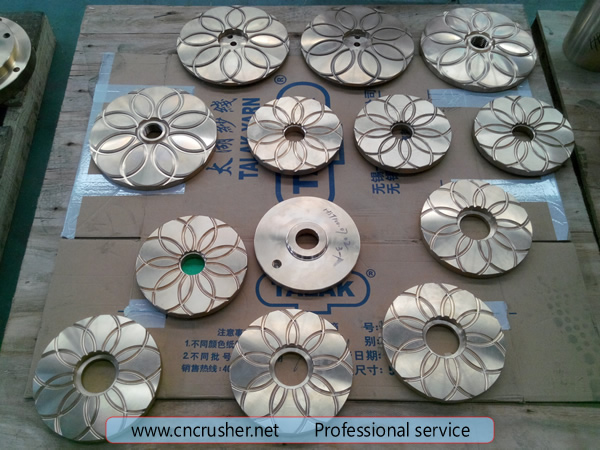

1 cone crusher wear plate

1 cone crusher wear plate

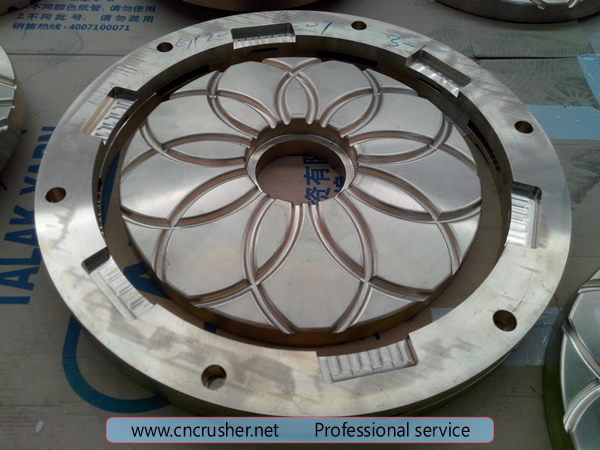

2 cone crusher wear plate

2 cone crusher wear plate

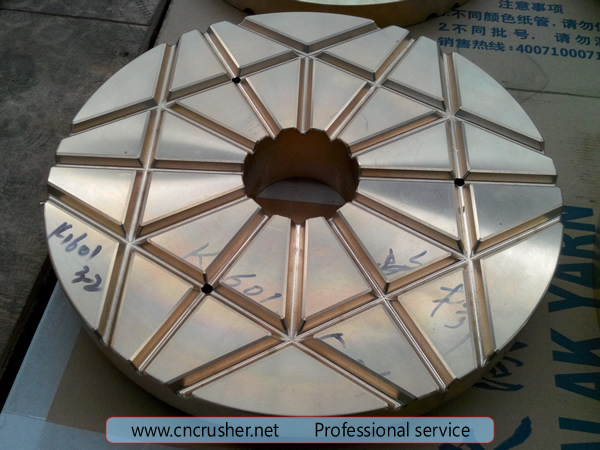

3 cone crusher wear plate

3 cone crusher wear plate

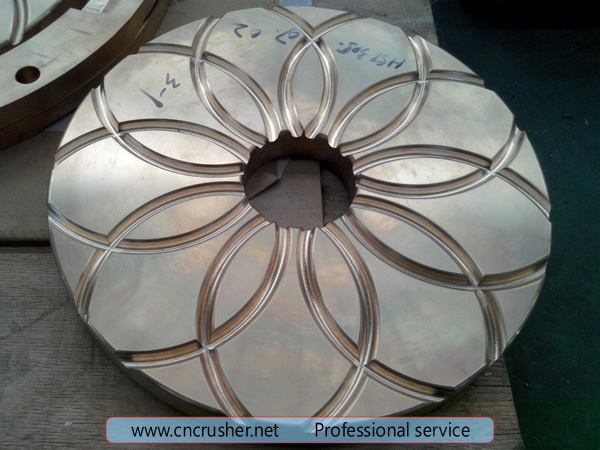

4 cone crusher wear plate

4 cone crusher wear plate

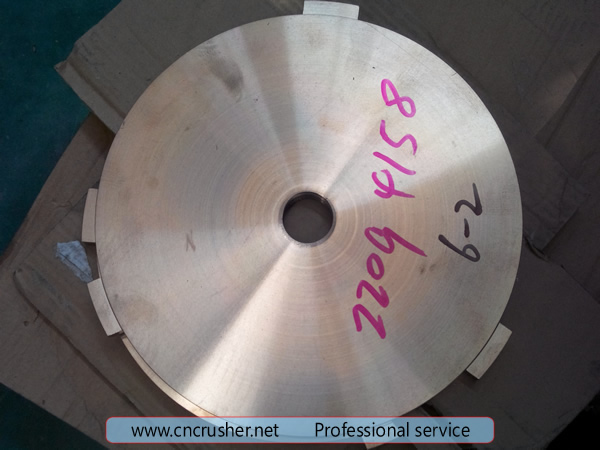

5 cone crusher wear plate

5 cone crusher wear plate

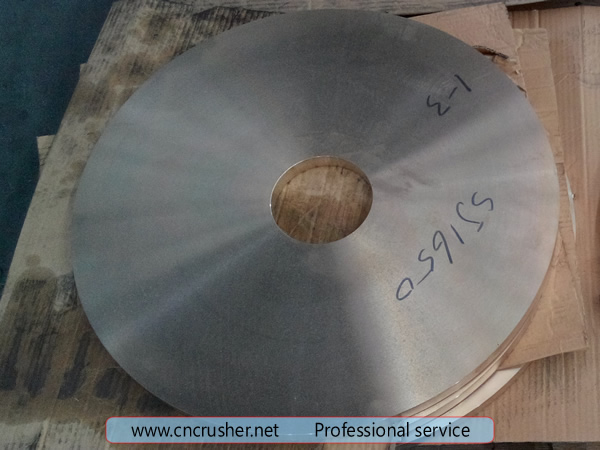

6 cone crusher wear plate

6 cone crusher wear plate

Make an inquiry

Step 1: Select a machine

Step 2: Show parts multi-select inquiry form

690DTR | Basic Rotor Assy | 353.26kg
B90AS20A | ROTOR BALANCE DEVICE ASSEMBLY | 104.72kg
B611S6400B | Assembly,Ring,Cavity | 410.3kg
B611S7401B | SPIDER FRAME | 94.41kg
B611S7420B | FEED KIT HOLDER | 74.31kg
B611S7440B | WEAR SKIRT KIT | 33.7kg
B913S7432B | FEED PLATE | 19.63kg
B611S7441B | WEAR SKIRT | 33.46kg
B962S2003A | PISTON SEAL | 19.6kg
B611S5421B | PISTON SEAL | 17.6kg
B96AC10B | HYDRAULIC PUMP UNIT | 6.78kg
B702S7040A | FEED TUBE | 12.48kg
B69274007A | TAPERED SLEEVE | 7.39kg
B69274120C | DISTRIBUTOR CONE | 14.55kg
B69274030F | FEED HOLE SLEEVE | 7.5kg
B69274135A | Wear plate | 13.69kg
B69274140A | Wear plate | 15.04kg
B96394049O | TIP | 5.62kg
B96394150N | WEAR PLATES | 7.02kg
B70274106G/W | Rotor Weldment | 172.91kg
B69274008A | TOP PLATE | 5.165kg
B69274170D | TOP PLATE | 40.18kg
B61274180A | TOP PLATE | 38kg
B69274031F | FEED HOLE SLEEVE | 7kg
B962S3004B | RETAINING RING | 8.8kg
B962S3006C | SEALING PLATE | 6.03kg
B96394150M | CAVITY WEAR PLATE | 15kg
B80304180A | LIPPED BOTTOM WEAR PLATE SET | 51kg
B80304170D | Top Wear Plated Lipped Plate Kit | 46kg

We focus on providing crushers and crusher wear spare parts

Symons cone crusher sizes: 2 feet, 3 feet, 4.25 feet, 5.5 feet, 7 feet

Sandvik CH420, CH430, CH440, CH660, CH880, CS420, CS430, CS440, CS660

HP100, HP200, HP300, HP400, HP500, HP700, HP800

42-65, 50-65, 54-75, 60-89, 60-110 Svedala MK-II Primary Gyratory Crusher

And wear spare parts for other common crushers
