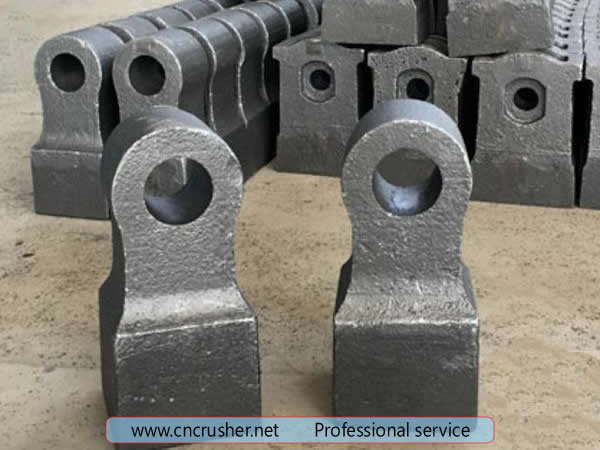

High manganese steel hammer

High Manganese Alloy Hammer

Mn13 and Mn18 manganese steel hammers for hammer crushers. Work-hardens under impact — surface reaches 500+ HB. Impact toughness: 100–150 J (Charpy V-notch).

Best suited for feed sizes above 150 mm where impact energy is high. The ductile austenitic core absorbs shock without fracturing, while the surface work-hardens with every strike.

Available in Mn13 (ZGMn13-1 through ZGMn13-5) and Mn18 grades. Chemical compositions below.

Material standard	C	Mn	Si	Cr	Mo	P	S
ZGMn13-1	1.0-1.45	11.0-14.0	0.30-1.0	-	-	≤0.09	≤0.04
ZGMn13-2	0.90-1.35	11.0-14.0	0.30-1.0	-	-	≤0.09	≤0.04
ZGMn13-3	0.9-1.35	11.0-14.0	0.30-0.8	-	-	≤0.09	≤0.04
ZGMn13-4	0.9-1.30	11.0-14.0	0.30-0.8	1.50-2.0	-	≤0.09	≤0.04
ZGMn13-5	0.75-1.30	11.0-14.0	0.30-1.0	-	0.90-1.2	≤0.09	≤0.04

Make an inquiry

Step 1: Select a machine

Step 2: Show parts multi-select inquiry form

We focus on providing crushers and crusher wear spare parts

Symons cone crusher sizes: 2 feet, 3 feet, 4.25 feet, 5.5 feet, 7 feet

Sandvik CH420, CH430, CH440, CH660, CH880, CS420, CS430, CS440, CS660

HP100, HP200, HP300, HP400, HP500, HP700, HP800

42-65, 50-65, 54-75, 60-89, 60-110 Svedala MK-II Primary Gyratory Crusher

And wear spare parts for other common crushers
