Minyu cone crusher and jaw crusher parts
Minyu Cone Crusher and Jaw Crusher Parts
Our Minyu Cone Crushers have four crushing capabilities to meet different operational needs. The "MCC" (Coarse) type is for primary crushing of larger material sizes. The "MCF" (Middle) type suits secondary crushing applications. For finer crushing, the "MCSH" (Fine) type provides particle size reduction. The "MCSS" (Extreme Fine) type handles ultra-fine crushing.
These crushers have a straightforward design and rugged construction, suited for demanding crushing operations. The Minyu Cone Crushers are well-balanced for efficient production. We offer a range of Minyu Cone Crusher models.
We supply bronze spare parts for 40"-60" Minyu cone crushers. These replacement parts are made for extended working life. Our inventory includes a selection of Minyu cone crusher and jaw crusher parts.
For more information, including technical specifications and pricing, please send us an email.
| Crusher Type | Parts Name | Parts No | Crusher Type | Parts Name | Parts No |
| MCC1000 | Frame Bushing | CD1041 | MCC54 | Lower Thrust Plate | C5 3071 |
| MCC1000 | Eccentric Bushing | CD3021 | MCC54 | Thrust Plate | C5 3051 |
| MCC1000 | Seat Liner | CD1111 | MCC54 | Seat Liner | C5 1111 |
| MCC1000 | Seat Liner Pin | CD111 | MCC54 | Eccentric Bushing | C5 3021 |
| MCC1000 | Thrust Plate | CD3051 | MCC54 | Frame Bushing | C5 1041 |
| MCC1000 | Concave | C12111 | |||
| MCC ~ MCF1000 | Mantle | C14031 | Crusher Type | Parts Name | Parts No |
| MCF1000 | Concave | C12121 | MCC60 | Frame Bushing | C6 1041 |
| MCC60 | Eccentric Bushing | C6 3021 | |||
| Crusher Type | Parts Name | Parts No | MCC60 | Seat Liner | C6 9111 |
| MCC1150 | Frame Bushing | CX 1041 | MCC60 | Lower Thrust Plate | C6 3071 |
| MCC1150 | Frame Bushing | CX 1041 | MCC60 | Thrust Plate | C6 3051 |
| MCC1150 | Eccentric Bushing | CX 3021 | |||
| MCC1150 | Eccentric Bushing | CX 3021 | Crusher Type | Parts Name | Parts No |
| MCC1150 | Seat Liner | CX 1111 | MSP200 | Concave | HD2121 |
| MCC1150 | Lower Thrust Plate | CX 3071 | MSP200 | Mantle | HD4031 |
| MCC1150 | Thrust Plate | CX 3051 | MSP200 | Outer eccentric bushing | HD1041 |
| MCC1150 | Concave | CX2111 | MSP200 | Inner eccentric bushing | HD3021 |
| MCC ~ MCF1150 | Mantle | CX4031 | MSP200 | Inner eccentric bushing | HD1111 |
| MCF1150 | Concave | CX2121 | |||
| Crusher Type | Parts Name | Parts No | |||

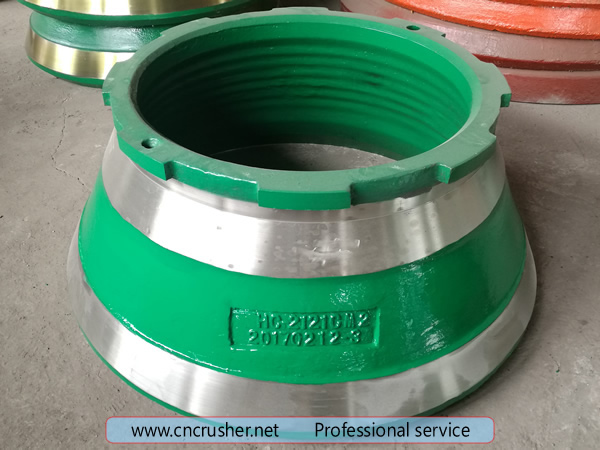

| Crusher Type | Parts Name | Parts No | MSP300 | Concave | HC2121 |
| MCC51 | Frame Bushing | CH 1041 | MSP300 | Mantle | HC4031 |
| MCC51 | Eccentric Bushing | CH 3021 | MSP300 | Outer eccentric bushing | HC1041 |
| MCC51 | Seat Liner | CH 1111 | MSP300 | Inner eccentric bushing | HC3021F |
| MCC51 | Lower Thrust Plate | CH 3071 | MSP300 | Seat liner | HC1111C |
| MCC51 | Thrust Plate | CH 3051 | |||
| MCC51 | Seat Liner Pin | CH 111 | Crusher Type | Parts Name | Parts No |
| 102115 | Hammer | I83041 | |||
| 102115 | Curtain liner | I84021 | |||
| 133115 | Hammer | IK3041 | |||
| 133115 | Curtain liner | IK4021 | |||
| 133152 | Hammer | IM3041 | |||
| 133152 | Curtain liner | IM4021 |
